A101 - Kioti Daedong
A101 - Kioti Daedong
| Technical specifications | |
|---|---|
| Engine type | A101 |
| Basic engine | KIOTI |
| Fuel | diesel |
| engine cooling | Closed circuit with coolant |
| air intake | natural breathing |
| cubism | 1007 cc |
| Connecting Rod Piston Route | 75 x 76 mm |
| Piston number | 3 |
| Weight | 135 kg |
| Maximum power (flywheel) | 25 Hp / 18,4 kw |
| Maximum rpm. | 3000 RPM |
| Altenator | 12V, 40 A |
| Type of chain | PRM 80 or ZF 10 |
| Decrease in reserve | 2,00 / 2,50 : 1 |
| Seawater intake diameter | 25 mm |
| Fuel pipe connection diameter | 8 mm |
| Fuel export diameter | 45mm |

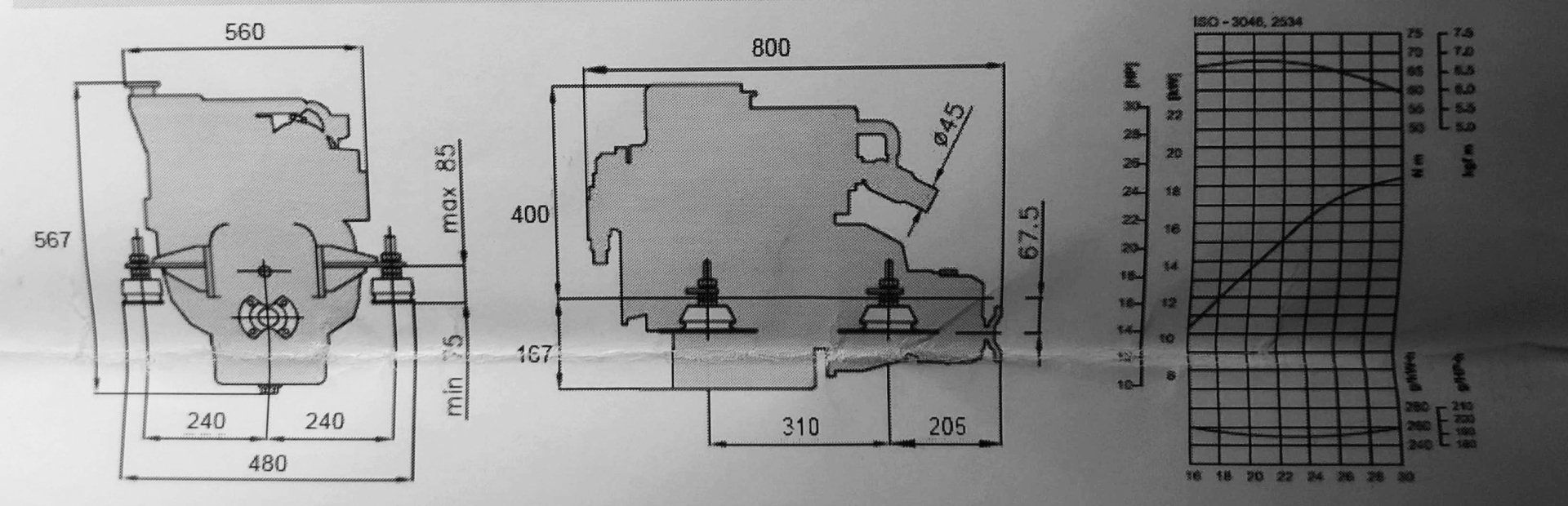

Diagrams
