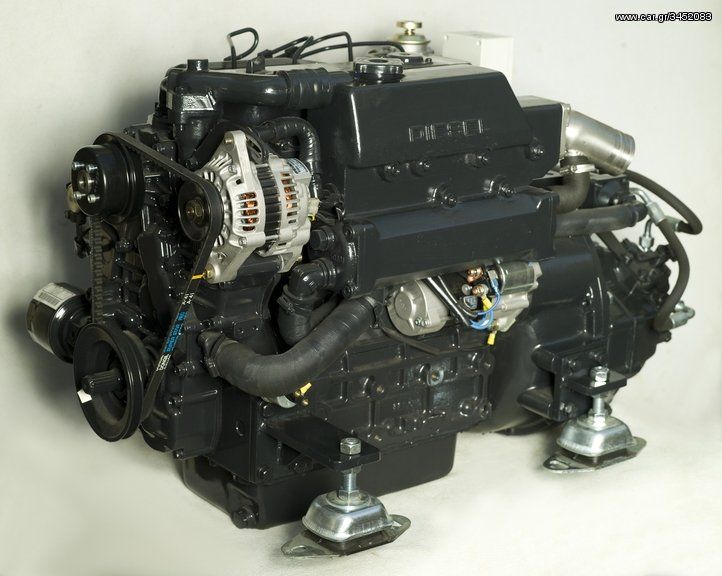

A220 - Kioti Daedong
A220 - Kioti Daedong
| Technical specifications | |
|---|---|
| Engine type | A220 |
| Basic engine | KIOTI |
| Fuel | diesel |
| engine cooling | Closed circuit with coolant |
| air intake | natural breathing |
| cubism | 2197 cc |
| Connecting Rod Piston Route | 87 x 92,4 mm |
| Piston number | 4 |
| Weight | 252 kg |
| Maximum power (flywheel) | 50 Hp / 36,7 kw |
| Maximum rpm. | 2800 RPM |
| Altenator | 12V, 50 A |
| Type of chain | RPM 150 |
| Decrease in reserve | 1,53 / 2,09 / 2,82 : 1 |
| Seawater intake diameter | 30 mm |
| Fuel pipe connection diameter | 8 mm |
| Fuel export diameter | 60 mm |

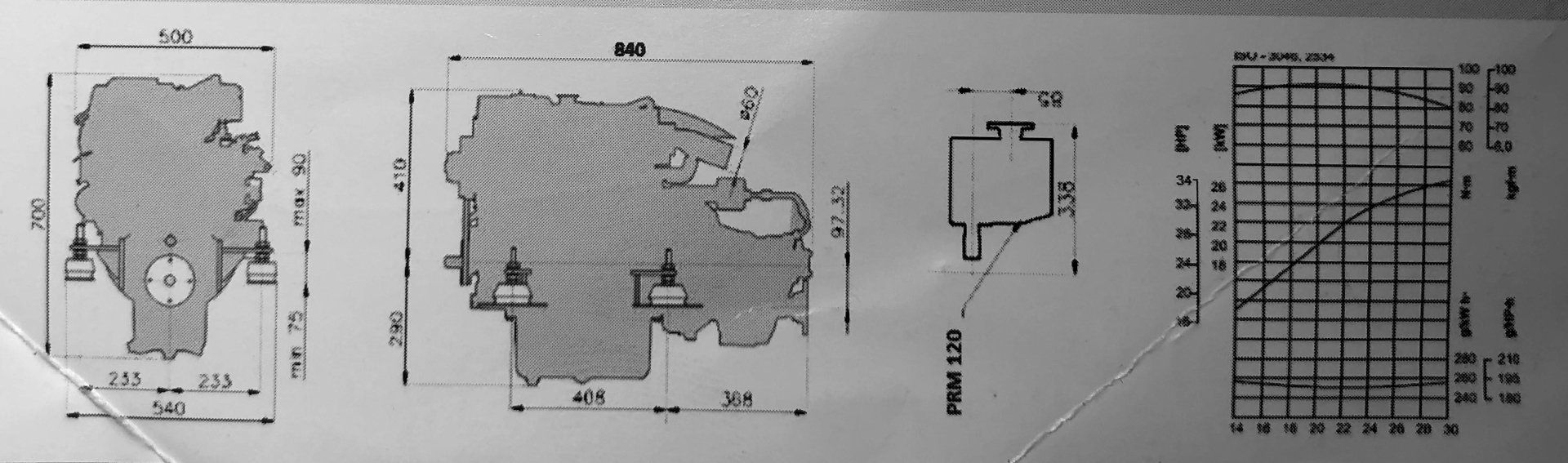

Diagrams
