D722-E3B

GENERAL SPECIFICATION
Engine model	D722-E3B
Emission regulation	EPA/CARB Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and stroke	mm (in)	67.0 x 68.0 (2.64 x 2.68)
Displacement	L (cu.in)	0.719 (43.88)
Aspiration	Naturally aspirated
Aftertreatment	-

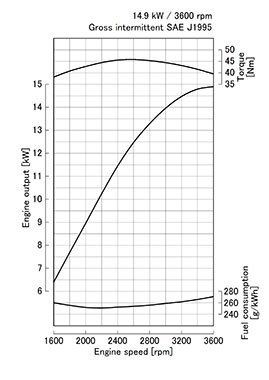

Rated output / speed*1	kW (HP) / rpm	14.9 (20.0) / 3600
Maximum torque / speed*1	Nm (lb-ft) / rpm	45.8 (33.8) / 2600
Combustion system	Indirect injection
Fuel system	In-line pump
Length x Width x Height*2
(without aftertreatment unit)	mm (in)	407 x 386 x 564 (16.0 x 15.2 x 22.2)
Length x Width x Height*3
(with aftertreatment unit)	mm (in)	-
Dry weight	kg (lb)	63 (139)

Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

1: SAE J1995 gross intermittent

*2: Exclude cooling fan and exclude aftertreatment unit

*3: Exclude cooling fan and include aftertreatment unit on engine

FEATURES & BENEFITS

Emissions

The Kubota Super Mini Series features compact multi-cylinder

liquid cooled industrial diesel engines which comply with EPA /

CARB Tier 4 emissions level.

Durable Power

The Kubota Super Mini Series has been chosen as a power source for a variety of applications. The D722 engine offers a seamless transition from E3 to E4 by maintaining the same level of performance and physical characteristics. Alternative fuel engines WG752-G (gasoline) and WG752-GL (dual fuel: gasoline / LPG) are available with the same footprint as the D722 engine.

Clean and Quiet Power

Kubota’s original E-TVCS (Three Vortex Combustion System) has

been improved. The piston recess has been optimized to achieve

lower particulate matter (PM) levels at an extremely small size.

The half-float valve cover and MoS2-coated pistons reduce noise

levels and decrease vibrations transmitted from the valve area.
