D905-E2B (3600 rpm)
| GENERAL SPECIFICATION | ||
|---|---|---|
| Engine model | D905-E2B (3600 rpm) | |
| Emission regulation | EPA/CARB Tier 2 level | |
| Type | Vertical, water cooled 4-cycle diesel engine | |
| Cylinders | 3 | |
| Bore and stroke | mm (in) | 72.0 x 73.6 (2.83 x 2.90) |
| Displacement | L (cu.in) | 0.898 (54.80) |
| Aspiration | Naturally aspirated | |
| Aftertreatment | - | |

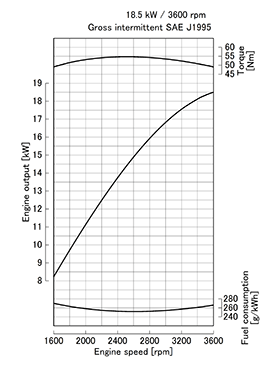

| Rated output / speed*1 | kW (HP) / rpm | 18.5 (24.8) / 3600 |
| Maximum torque / speed*1 | Nm (lb-ft) / rpm | 54.7 (40.3) / 2600 |
| Combustion system | Indirect injection | |
| Fuel system | In-line pump | |

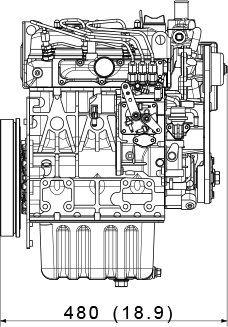

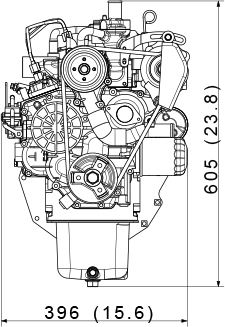

| Length x Width x Height*2 | ||
| (without aftertreatment unit) | mm (in) | 480 x 396 x 605 (18.9 x 15.6 x 23.8) |
| Length x Width x Height*3 | ||
| (with aftertreatment unit) | mm (in) | - |
| Dry weight | kg (lb) | 93 (205) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
