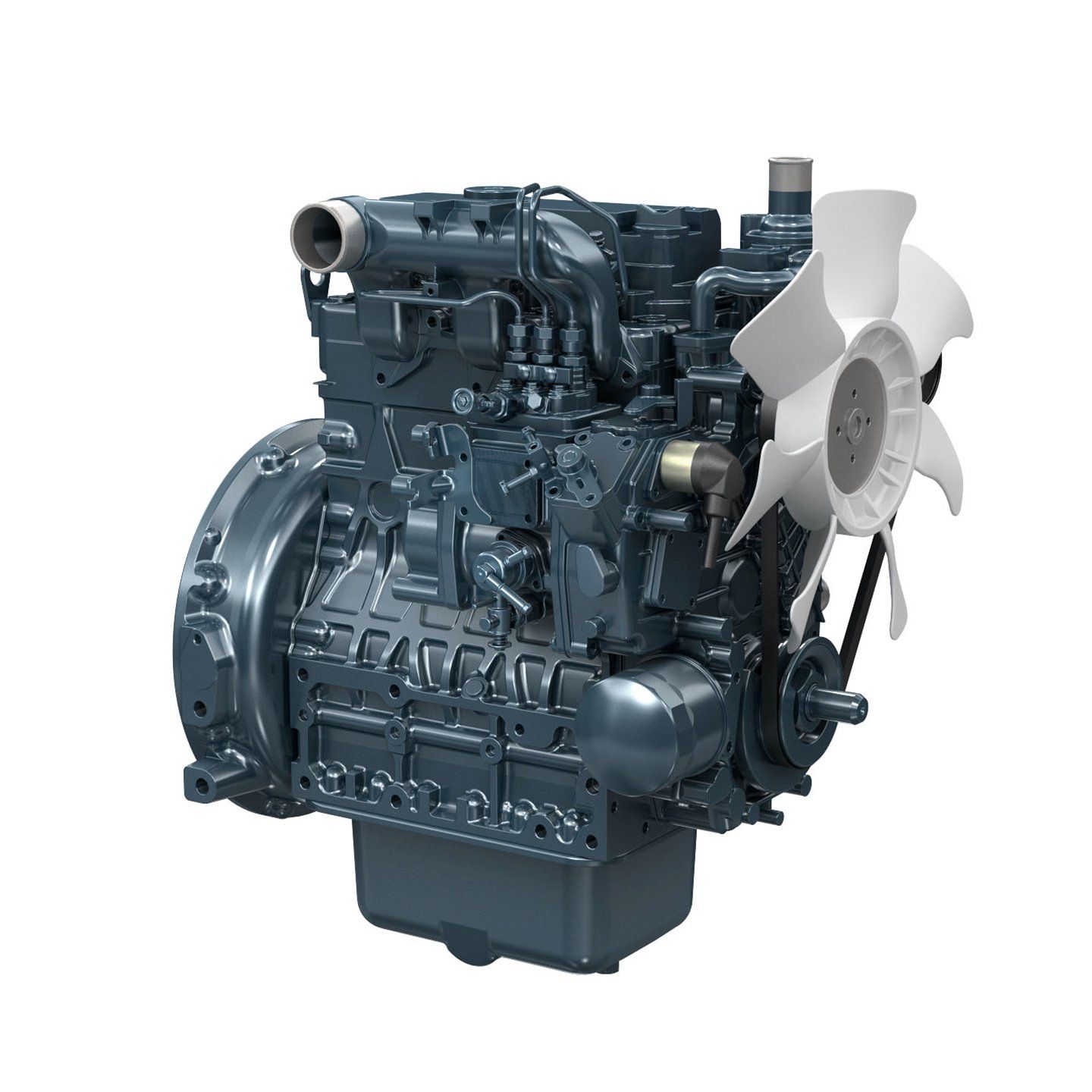

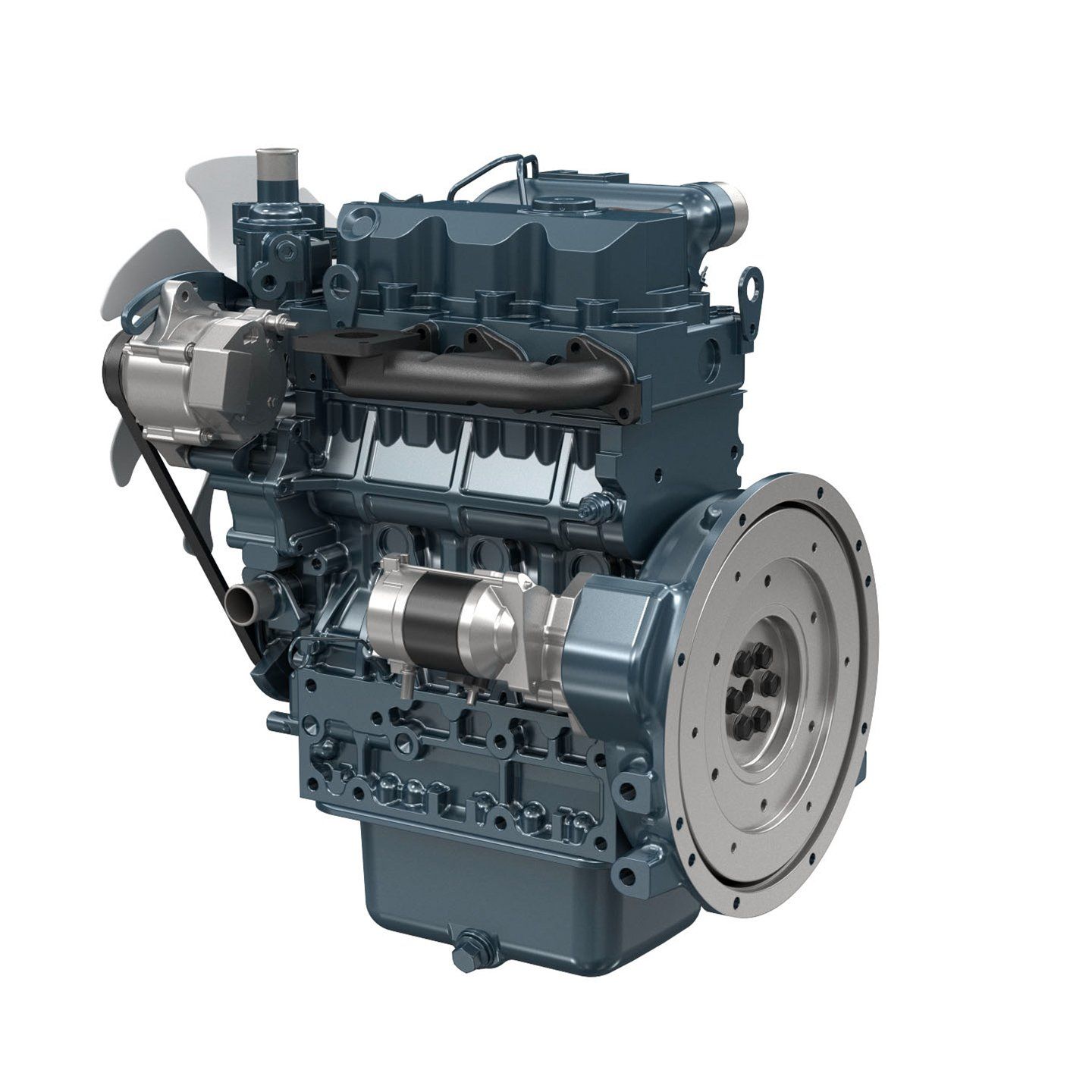

D1803-M-DI-E3B
| GENERAL SPECIFICATION | ||
|---|---|---|
| Engine model | D1803-M-DI-E3B | |
| Emission regulation | EPA/CARB interim Tier 4 level + EU Stage IIIA | |
| Type | Vertical, water cooled 4-cycle diesel engine | |
| Cylinders | 3 | |
| Bore and stroke | mm (in) | 87.0 x 102.4 (3.43 x 4.031) |
| Displacement | L (cu.in) | 1.826 (111.4) |
| Aspiration | Naturally aspirated | |
| Aftertreatment | - | |

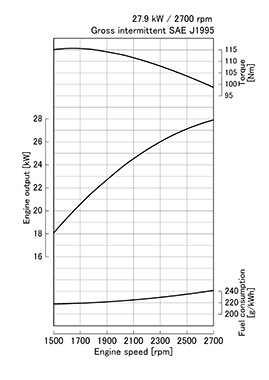

| Rated output / speed*1 | kW (HP) / rpm | 27.9 (37.4) / 2700 |
| Maximum torque / speed*1 | Nm (lb-ft) / rpm | 115.6 (85.3) / 1600 |
| Combustion system | Direct injection | |
| Fuel system | In-line pump | |
| Length x Width x Height*2 | ||
| (without aftertreatment unit) | mm (in) | 551 x 495 x 684 (21.7 x 19.5 x 26.9) |
| Length x Width x Height*3 | ||
| (with aftertreatment unit) | mm (in) | - |
| Dry weight | kg (lb) | 151 (333) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
FEATURES & BENEFITS
Emissions
The D1803-M engine complies with the EPA / CARB interim Tier
4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 03-M Series is well known for its industrial applications.
With numerous features such as a built-in solenoid, low fan position,
and single-side serviceability, this engine provides excellent
performance and flexibility.
The cooling water passages between the cylinder bores features
Kubota’s original casting technology as a countermeasure
against the heat load caused by high power density, providing
both superior endurance and reliable engine performance.
The D1803-M engine offers a seamless transition from EPA Tier 2
to Interim Tier 4 by maintaining the same footprint and hardware
mounting points with minimal performance changes from Tier 2
engines.
Clean and Quiet Power
The fuel injection pressure has been increased to achieve lower
particulate matter (PM) levels.
The half-float valve cover and MoS2-coated pistons reduce noise
levels compared to conventional diesel engines and decrease
vibrations transmitted from the valve area, providing enhanced
noise reduction.
Options
Kubota 03-M Series engines offer side power take-off (PTO) in
response to the trend of the use of hydraulic control devices in
industrial machines. A hydraulic pump can be installed at the two
side PTO locations.
Indirect-Injection engines are also available.
