General Marine Parts
HC OB
| Technical specifications | |
|---|---|
| Engine type | HC OB |
| Type of product | Hydraulic cylinder for outbord engine |
| Nominal maximum pressure | 55 bar |
| Promjer cilindra | 30 mm |
| Hod cilindra | 225 mm |
| Promjer klipne motke | 14 mm |
| Radni volumen cilindra | 124 cm3 |
| Max. sila | 3038 N |

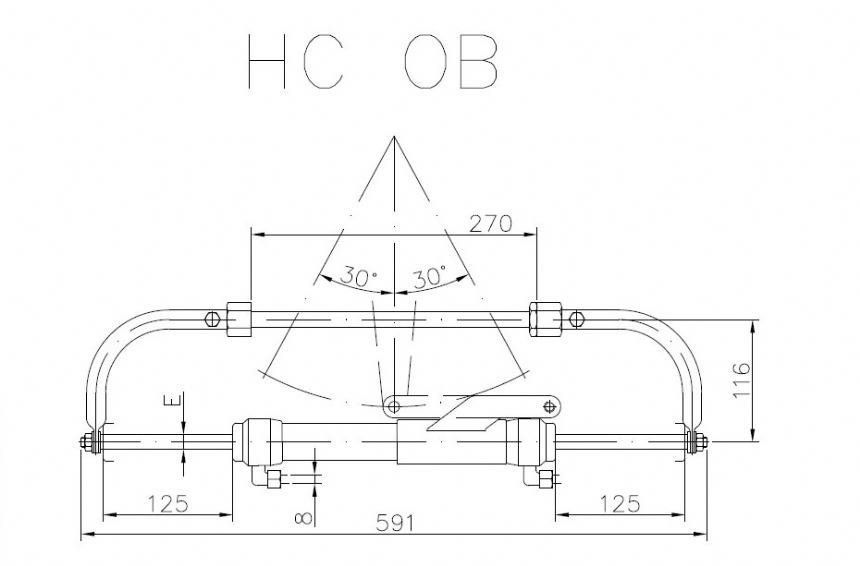

Blueprints and diagrams HC OB
Standard equipment
Operation manual
Description
SCAM hydraulic cylinder HC OB is usually installed in combination with the hydraulic pump HP 05 OB. SCAM hydraulic cylinders are easily installed. Due to the careful choice of material (inox - bronze) they don’t require any special maintenance.
We recommend SCAM HIDRAULIC FLUID or the following hydraulic oils:
- - INA Hidraol 15
- - Castrol HYSPIN AWH-15
- - Shell Tellus T 15
- - Mobil HSC 522
- - BP Bartan HV 15
- - Valvoline Ultramax HD15
and other hydraulic oils with same specifications.
Info
SCAM marine gives a 24 month warranty on steering gears starting with delivery date. SCAM marine hydraulic cylinders have type approval certificate of the Croatian Register of Shipping and CE mark.
