PNR, PNK, PNT

Technical specifications
Engine type PNR, PNK, PNT
Type of product Fitting exstension

PSC-CuPSC-Cu

Standard equipment

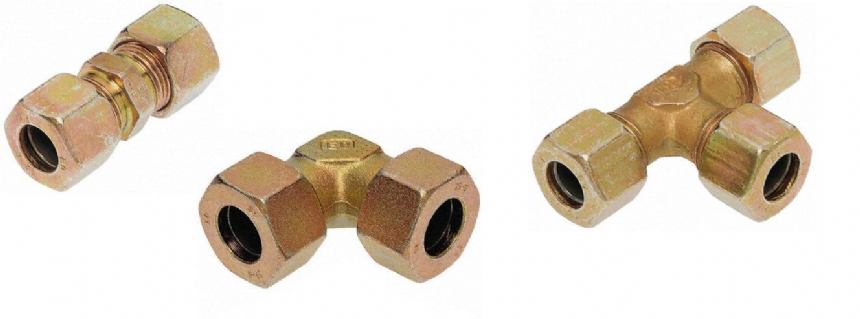

Fittings type:
  • Fitting exstension straight PNR
  • Fitting exstension elbow PNK
  • Fitting exstension T PNT

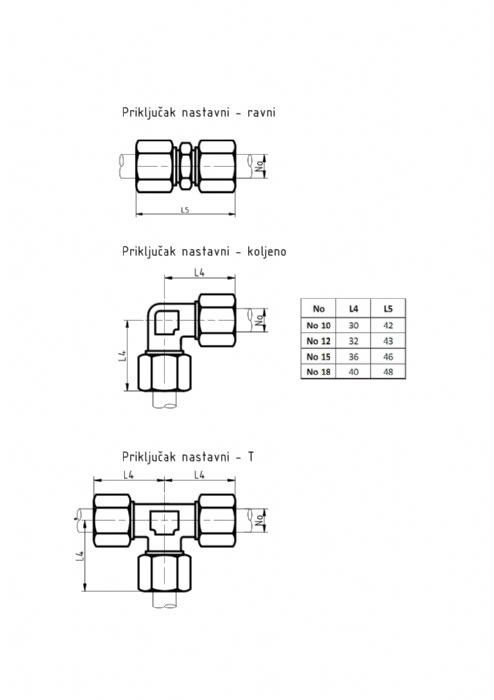

Fittings dimensions:
  • No10
  • No12
  • No15
  • No18
Description
Fittings are used to connect hydraulic hoses with cylinders, pumps, valves etc.
They are made from brass, corrosion resistant material.

Fittings consist of: union body, double edge cutting ring and nut. They are used to connect - exstension metal pipes (copper) or flexibile hoses (with mounted fittings). The seal between the union and the tube is obtained by tightening the nut with 1 and a 1/2 turn, so that the double edge cutting ring, sliding along the bevel housing of the union will uniformly cut into the tube and, at the same time, anchors between the tube and the bevel wall.
 Info
Fittings are made:
No10 for HP05 and HP05OB in combination with HC400, HC550, HC700 and HC850
No12 for HP07 in combination with HC1050, HC1600 and HC2100
No15 for HC09/80 in combination with HC2100 and HC2600
No18 for HC09/160 in combination with HC3500 and HC5000
